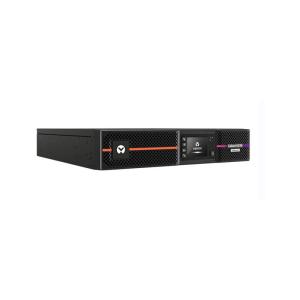

Vertiv Liebert GXT5-750IRT2UXL 750VA 750W Online Rack Tower UPS

Name: Vertiv Liebert GXT5750IRT2UXL 750VA 750W Online Rack Tower UPS
Brand: Vertiv
Price: 1 USD

China Vertiv Liebert GXT5-750IRT2UXL 750VA 750W Online Rack Tower UPS wholesale

Brand Name : Vertiv

Model Number : Vertiv GXT5 UPS

Certification : CE

Place of Origin : China

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/months

Delivery Time : 60days

Packaging Details : cartons

Product name : Vertiv GXT5 UPS

Power level : 750VA - 3000VA

Technology : 230 VAC

Product type : Tower UPS/Rack-mounted UPS

Input Voltage : 230 VAC

Rated Frequency : 50 Hz / 60 Hz

Frequency Range : 40-70Hz; Auto Sensing

Output Voltage : 200/208/220/230/240 VAC

Rated frequency : 50-60Hz

Waveform : Sine wave

Battery Type : Valve-regulated,non-spillable, lead acid

Rated Voltage : 36 Vdc, 48 Vdc, 72 Vdc

Charger Current : Nominal 2.2 A; Maximum 8 A

Operating Temperature : Full power up to 40 ºC (up to 50 ºC with derating)

Storage Temperature, °C : - 15 to + 40

Relative Humidity : 0 to 95% non-condensing

Operating Elevation : Up to 3,000 m at 25°C without derating

Audible Noise : 46 dB

Safety : UL-1788 ,C-UL listed, IEC 62040-1 2 EN 62040-1

RFI/EMI : CISPR22 Class A (RFI) / FCC Part 15 (Class A)

Transportation : ISTA Procedure 1A

Contact Now

Vertiv Liebert GXT5-750IRT2UXL 750VA 750W Online Rack Tower UPS

The Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. The new Liebert® GXT5™ from Vertiv™ is an advanced version of the widely-regarded GXT UPS Series. GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications.

Best Suited For:

Banking, Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Manufacturing
Retail and Wholesale
Telecom
Transportation

Features

Available in 750VA/1/1.5/2/3kVA

Top-level on-line double conversion UPS for mission-critical application

Unity output power factor

LCD multi-language color display (gravity sensing)

On-line (VFI) mode efficiency up to 94% at full load

Active ECO mode efficiency up to 98%

Energy Star 2.0 certified

Controllable and programmable output sockets

Integrated solution with batteries and electronics

External battery cabinets auto-detection

Operates at full power up to 40°C (up to 50°C with derating)

Intelligent Communication ready

Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability

STANDARD SPECS

Ratings (VA /W). 750 VA / 750 W

Dimensions and Weight

Dimensions (mm) Unit, W×D×H 400×430×85

Unit Weight (kg) 16.5

Input

Rated Volatge 230 VAC

Rated Frequency 50 Hz / 60 Hz

Frequency Range 40 to 70 Hz

Power Factor ≥0.99

Input Power Cord C14

Output

Nominal Voltage 200/208/220/230/240 VAC

Waveform Sine wave

Inverter Overload Capability >200% minimum 250 ms, 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 seconds

Efficiency in Online Mode Up to 93%

Active Eco Mode Up to 98%

Output Receptacles (8) EN60320/C13

Internal Battery

Rated Voltage 36 Vdc

Charger Current Nominal 2.2 A; Maximum 8 A

Type Valve-regulated, non-spillable, lead acid

Qty x V x Rating 3 x 12 V x 9.0 Ah

End Cell Voltage 1.67 V/cell (discharge voltage per cell will be from 1.67 Vdc to 1.90 Vdc, canbe selected by PARAMSET)

Floating Voltage Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell

Battery Voltage Range 30 Vdc to 42.3 Vdc

General

Operating Temperature, °C Full power up to 40 oC (up to 50 oC with derating)

Storage Temperature, °C -20 to 60 ( contain batteries will be from -15 to 40 °C.)

Relative Humidity 0 to 95% non-condensing

Operating Elevation Up to 3,000 m at 25°C without derating

Audible Noise <46 dBA max @ 3 ft. (1 m) front and sides <43 dBA max @ 3 ft. (1 m) rear

Safety UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013

Transportation ISTA Procedure 1A

Surge Immunity : ANSI C62.41 Category B

Warranty 3 Years
