Visench Galleon II 3P3P Rack 20KL 20KVA 20KW 20000VA 20000W OEM Rackmount Systems Online UPS For Telecommunications

Name: Visench Galleon II 3P3P Rack 20KL 20KVA 20KW 20000VA 20000W OEM Rackmount Systems Online UPS For Telecommunications
Brand: Visench
Price: 999.00 USD

China Visench Galleon II 3P3P Rack 20KL 20KVA 20KW 20000VA 20000W OEM Rackmount Systems Online UPS For Telecommunications wholesale

Warranty : 1year

Place of Origin : Guangdong, China

Brand Name : Visench

Model Number : Visench Galleon II Rack

Phase : Three Phase

Protection : Short Circuit

Type : On-line

Application : Telecommunications

Electric Energy : 10000 Wh

Product name : Galleon II 3P3P Rack

Rated Capacity : 10KVA-60KVA

Power Factor : 0.99

Input Voltage : 208/220/230/240 VAC(Ph-N)

Output Voltage : 3 x 360*/380/4001415 VAC(3Ph+N)or 208*12201230/240 VAC (Ph-N)

Waveform : Pure Sine wave

Battery Type : Depending on the applications

Inverter to Bypass : Zero

Size(mm) : 680 x 438 x 133

Weight(Kgs) : 27/30/32/34/45

Price : $999.00 - $2,621.00/pieces

Contact Now

Visench Galleon II 3P3P Rack 20KL 20KVA 20KW 20000VA 20000W OEM Rackmount Systems Online UPS For Telecommunications

MODEL

10KL

15KL

20KL

30KL

40KL

60KL

PHASE

3-phase in/3-phase out

CAPACITY

10KVA/10KW

15KVA/15KW

20KVA/20KW

30KVA/30KW

40KVA/40KW

60KVA/6DKW

PARALLEL CAPABILITY

INPUT

Nominal Voltage

3×400 VAC (3Ph+N)or 208*220/230/240 VAC (Ph-N)

Voltage Range

190-520 VAC(3-phase)@50%load;305-478 VAC(3-phase)@100%load

Frequency

48~54 Hz or 56~84Hz

Power Factor

≥0.90 @100%load

OUTPUT

Output Voltage

3x380Y3801400/415 VAC(3Ph+N)or 208*220/230/240 VAC (Ph-N)

3x380Y380/400/415 VAC(3Ph+N)

AC Voltage Regulation (Batt.Mode)

±1%

Frequency Range (Synchranized Range)

46~54Hz or 56~64Hz

Frequency Range (Batt.Mode)

50 Hz±0.1 Hzor60 Hz±0.1 Hz

Current Crest Ratio

3:1 (max.)

Harmonic Distortion

≤2%THD(Linear Load):≤5%THD (Non-linear Load

Transfer Time

AC mode to Battery mode

Zero

Invener to Bypass

Zero

Waveform (Batt.Mode)

Pure Sinewave

Overload

AC Mode

100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately

Battery Mode

100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately

EFFICIENCY

AC Mode

95.5%

ECO Mode

98.5%

Battery Mode

94.5%

BATTERY

Battery Type

Depending on the applications

Battery Numbers

20 pcs

32~40 pcs(Adjustable)

Charging Current (max.)

1A~12A(Adjustable)

1A-10A (Adjustable)

1A~18A (Adjustable)

Charging Voltage

+1-13.65 VDC x N (N=10)

+113.85 VDCxN (N=16~20)

PHYSICAL

Dimension,DxWxH(mm)

880x438x133(3U)

797x438x176(4U）

Net Weight (Kgs)

ENVIRONMENT

Operating Temperature

0-40℃

Operating Humidity

<95% and non-condensing

Noise Level

Less than 62dBA @1Meter

Less than 65dB @1 Meter

Less than 70dB @1 Meter

MANAGEMENT

Smart RS-232/USB

Supports WindowsO family.Linux and MAC

Optional SNMP

Power management from SNMP manager and web browser

Product name	Galleon II 3P3P Rack
Rated Capacity	10KVA-60KVA
Power Factor	0.99
Input Voltage	208*122012301240 VAC(Ph-N)
Frequency	46~54 Hz or 56~64Hz
Output Voltage	3 x 360/380/4001415 VAC(3Ph+N)or 20812201230/240 VAC (Ph-N)
Waveform	Pure Sine wave
Battery Type	Depending on the applications
PHASE	3-phase in/ 3-phase out
Harmonic Distortion	≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-inear Load)
Current Crest Ratio	3:1(max.)
Battery Mode	94.50%
Frequency Range	46~54Hz or 56~64Hz
Inverter to Bypass	Zero
Operating Temperature	0-40°C
Size(mm)	680 x 438 x 133
Weight(Kgs)	27/30/32/34/45

1. who are we?
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU

4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian

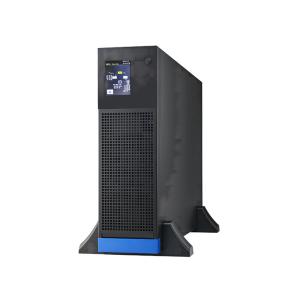

Visench Galleon II 3P3P Rack 20KL 20KVA 20KW 20000VA 20000W OEM Rackmount Systems Online UPS For Telecommunications Images
